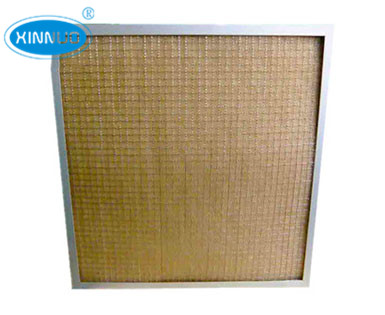

耐高溫初效空氣過濾器
High temperature resistant coarse
efficiency of air filters
特點Features
●使用國產(chǎn)玻璃纖維棉或進口合成纖維棉過濾
●適用于要求空氣凈化的烤箱或隧道爐中
●Domestic glass fiber cotton or imported synthetic fiber filter cotton
●Applicable requirements of air purification oven or tunnel furnace
型號尺寸及其他參數(shù)
Standard specification
型號 model | 外形尺寸 Outside Dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Initial resistance(Pa) | 效率（級別） Efficiency (class) | 濾料型號 Model of filter media | 最高溫度 The highest temperature |
XN-CXN-15J | 500×250×25mm 20″×10″×1″ | 1500m3/h | 25Pa | G3 | 玻璃纖維棉Glassfiber cotton 進口合成纖維棉 Imports of synthetic fiber cotton | 300℃ |
XN-CXN-30J | 500×500×25mm 20″×20″×1″ | 3000m3/h | ||||
XN-CXN-42J | 595×595×25mm 24″×24″×1″ | 4200m3/h |
